Ready to optimize your filtration system? [Get in touch with us]now for bulk pricing and shipping details.

Advanced Engineering and Material Specifications

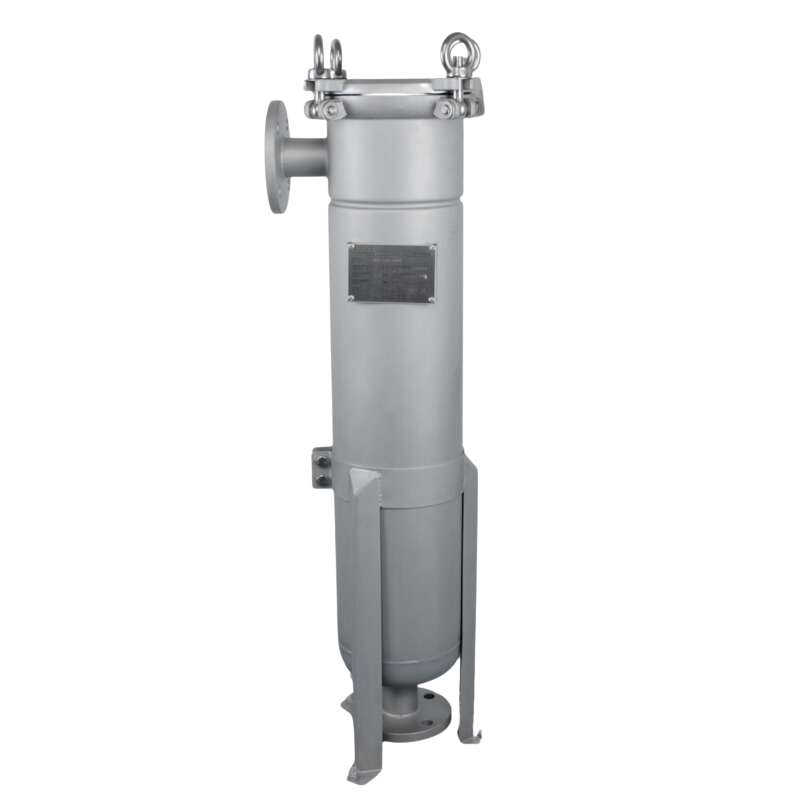

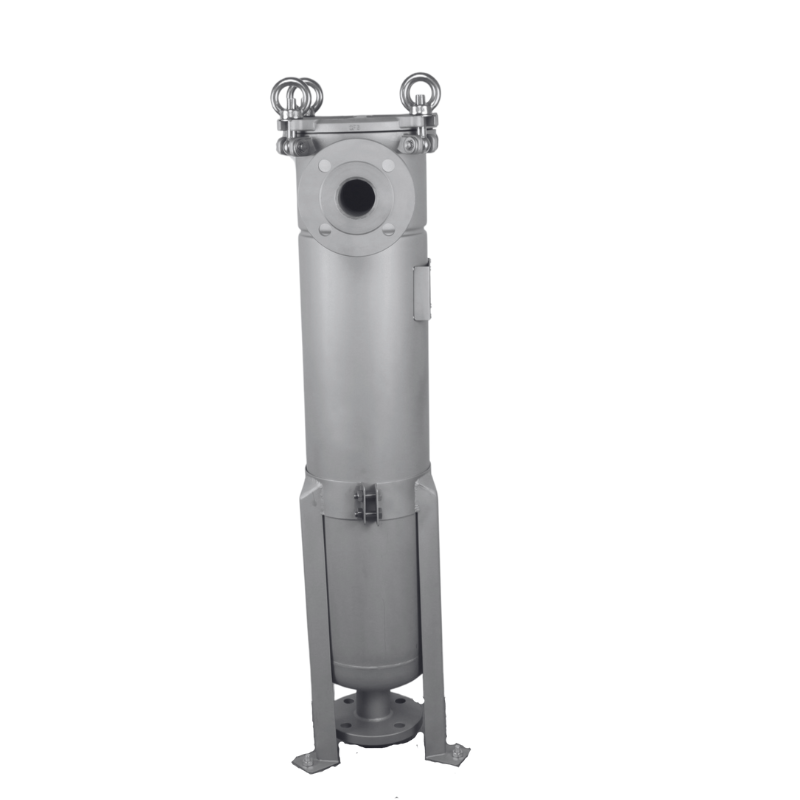

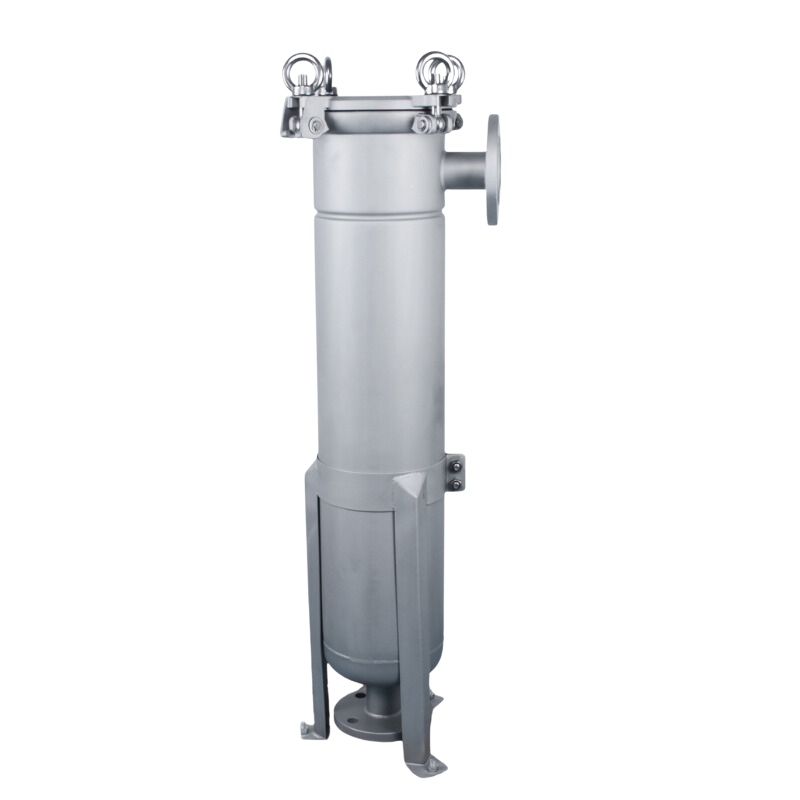

Constructed from premium SUS304 and SUS316L stainless steel, this side-in bag filter is tailored to withstand design pressures up to 10 bar and

temperatures reaching 120°C. It features a flange interface ensuring a secure, leak-proof connection essential for industrial reliability. The unit offers

a flow capacity of 6 to 40 cubic meters per hour, suitable for high-volume filtration needs. Sealing options include O-type rings and chemical-resistant

materials such as Buna, EPDM, Viton, and Silicone, which provide adaptable chemical resistance. Available surface treatments—sandblasting or

polishing—enhance corrosion resistance while facilitating integration via adjustable legs for precise system alignment.

Industry Adaptability and Operational Efficiency Benefits

The HFF Side-in Bag Filter finds application across diverse sectors including chemical processing, water treatment, pharmaceutical manufacturing,

and food and beverage production. Its robust construction and customizable design enable it to meet stringent compliance standards and adapt to

varying operational workflows. Leveraging its scalable architecture and compatibility with standard filter bags, it optimizes filtration throughput and

operational uptime. This water filter housing supports process engineers in achieving cost-effective filtration solutions that improve product quality

and system reliability while facilitating integration with existing operational infrastructure.

Product Advantages

Modular Design and Integration Benefits

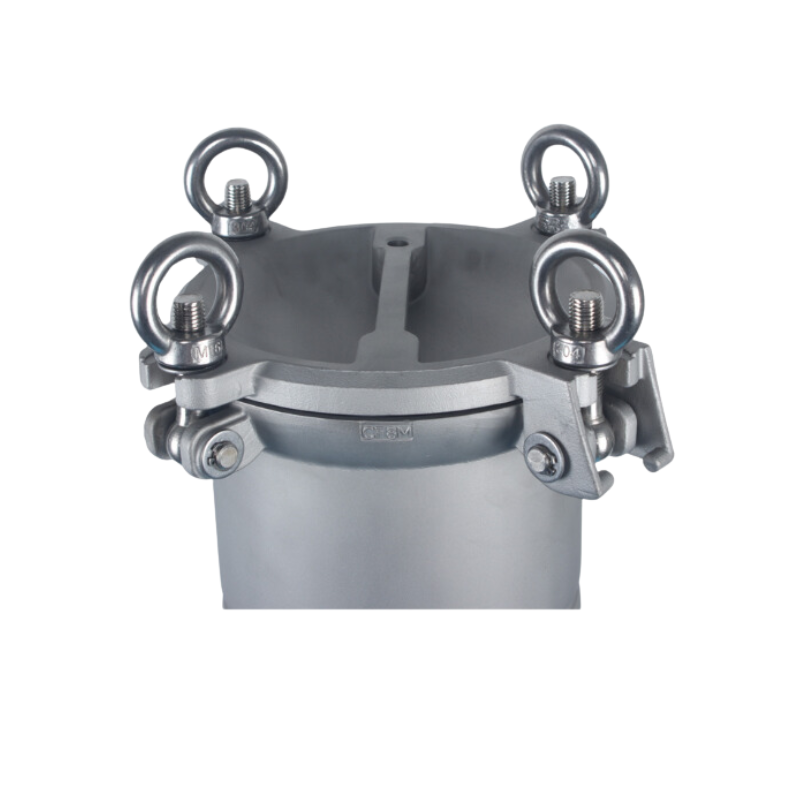

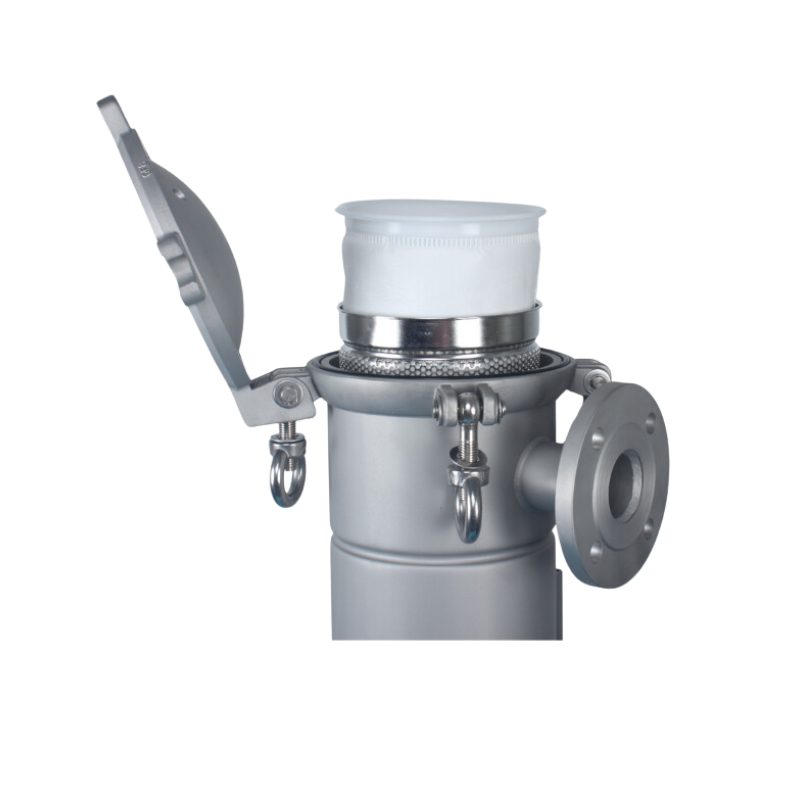

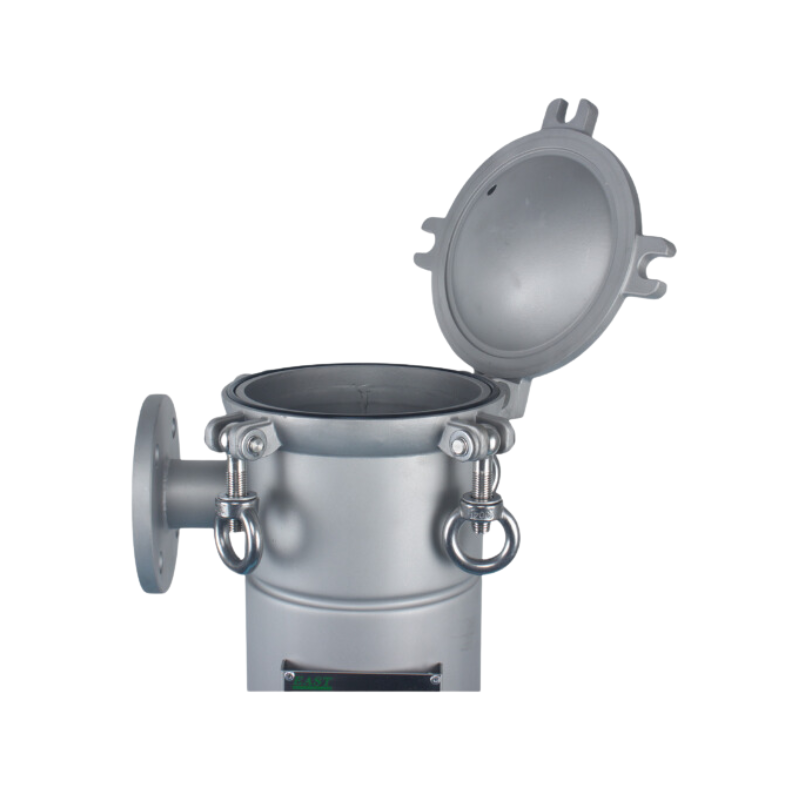

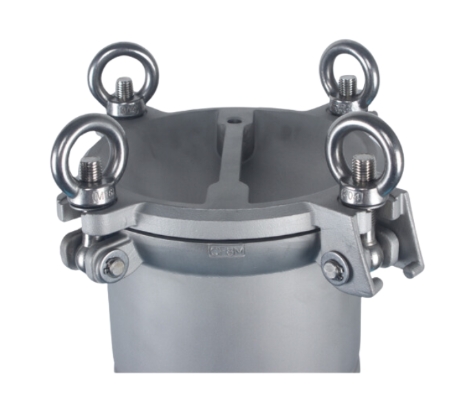

The HFF Side-in Bag Filter incorporates a modular and scalable design that streamlines integration into complex filtration systems. Its side-in bag

configuration enhances ease of access for maintenance while the flange connection system ensures a reliable, leak-proof seal under pressure. The

housing’s stainless steel composition from SUS304/SUS316L provides structural strength against corrosion and mechanical stress. Customizable

features—including multiple seal materials and surface finishes—allow adaptation to specific chemical environments. The leg adjustment option simplifies

installation alignment, reducing installation complexity and enhancing system compatibility among various industrial-grade water filter housing options.

Operational Performance and User-Centric Features

This product delivers operational robustness through its high flow capacity and chemical-resistant sealing solutions, resulting in consistent filtration

performance for industrial users. The inclusion of multiple standard filter bag sizes supports flexibility, enabling users to optimize filtration parameters

based on process requirements. Its construction supports thermal and pressure tolerances essential for demanding industrial environments, reducing

risk of failure. The ergonomic design reduces downtime related to bag replacement or maintenance. Collectively, these features provide tangible cost

savings and improved system reliability, aligning with the priorities of engineering teams sourcing advanced filter housing suppliers for water filter housing

solutions.

Usage Scenarios

Chemical Processing Plant Efficiency Enhancement

In chemical processing facilities, maintaining fluid purity under high temperature and pressure is critical. The HFF Side-in Bag Filter serves as a pivotal

component by providing secure flange connections and chemical-resistant sealing that withstand aggressive media. Its ability to accommodate various

filter bag sizes allows customization tailored to specific chemical filtration protocols. The robust SUS316L construction resists corrosion in harsh chemical

environments, ensuring durability. Integration with existing process lines is facilitated by the adjustable leg system and standard flange interfaces, while

the high flow capacity supports continuous operations, thereby enhancing overall plant efficiency and compliance with safety standards.

Water Treatment Facility System Upgrade

Modern water treatment plants benefit from the HFF Side-in Bag Filter’s scalable design, which supports handling large liquid volumes efficiently. Its

stainless steel water filter housing construction contributes to long-term corrosion resistance essential in municipal and industrial water systems. The

product’s compatibility with standard bag filters enables standardized maintenance workflows, while the leak-proof flange connection minimizes

contamination risks. The option to select chemical-resistant seal materials such as EPDM or Viton ensures resistance to varied water chemistries.

This reliability and ease of system integration improve workflow consistency, supporting high throughput and regulatory compliance in water treatment

operations.

FAQ

1.What materials are used in the HFF Side-in Bag Filter?

The HFF Side-in Bag Filter is made from premium stainless steels SUS304 and SUS316L, providing durability under pressures up to 10 bar and

temperatures up to 120°C. Chemical-resistant seals like Buna, EPDM, Viton, and Silicone ensure reliable performance in diverse industrial environments.

2.Can the HFF Side-in Bag Filter be customized for specific industrial uses?

Yes, the filter housing can be customized based on your operational requirements. EAST Filtration offers scalable and tailored solutions, adapting flange

connections, seal materials, and surface finishes to meet precise filtration needs, ensuring integration with your existing systems.

3.How does the side-in design benefit installation and maintenance?

The side-in design allows flexible bag compatibility (sizes 1# to ) and simplifies installation with a leg-adjustment feature. This ensures secure placement

and easy access for maintenance, reducing downtime while maintaining a leak-proof seal through flange connections.

4.Who are the key customers served by EAST Filtration as a filter housing supplier?

EAST Filtration supplies durable water filter housing systems to industries including chemical processing, pharmaceutical, food and beverage, and

water treatment. With certifications and OEM capabilities, we support clients requiring high-volume, reliable filtration solutions worldwide.
